Solder Spheres
The right solder spheres for BGA and CSP ball attach or BGA rework depend on the alloy, the sphere diameter, and the application. EasySpheres supplies precision solder spheres in lead-free, tin-lead, high-lead, and low-temperature alloys, in diameters from 0.050 mm to 0.889 mm, for semiconductor packaging, PCB assembly, prototyping, and BGA rework. As a solder sphere supplier with same-day shipping and supply from 10,000 spheres to production volumes, EasySpheres helps customers match the right spheres to their exact requirements.
Solder Sphere Alloys, Sizes and Technical Specifications

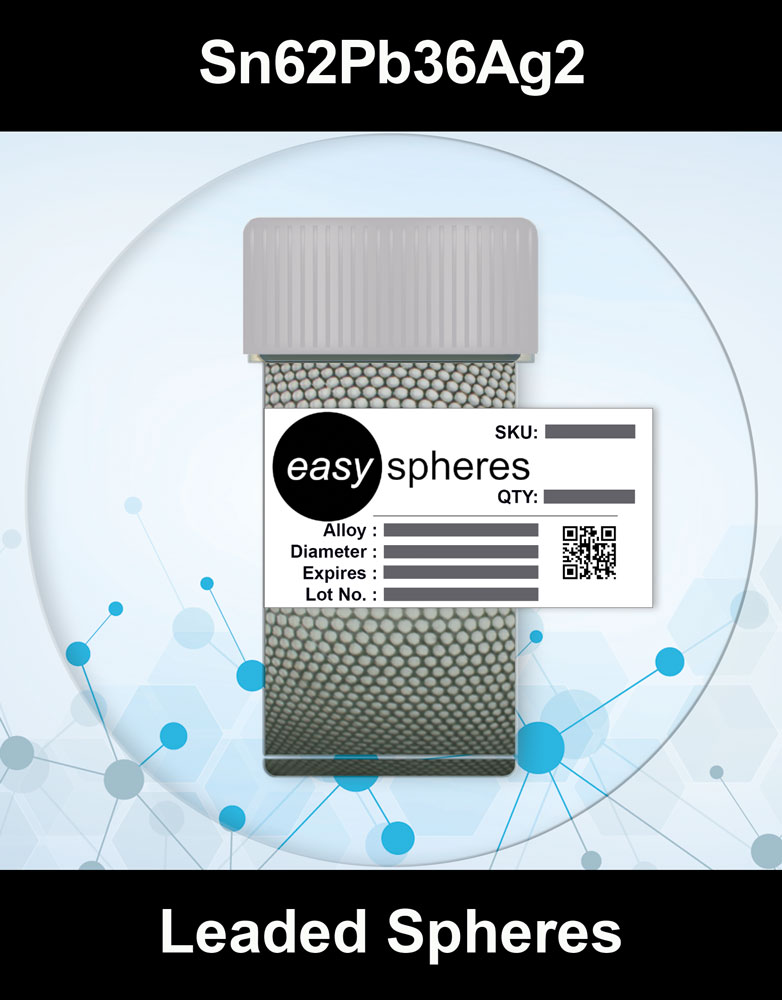

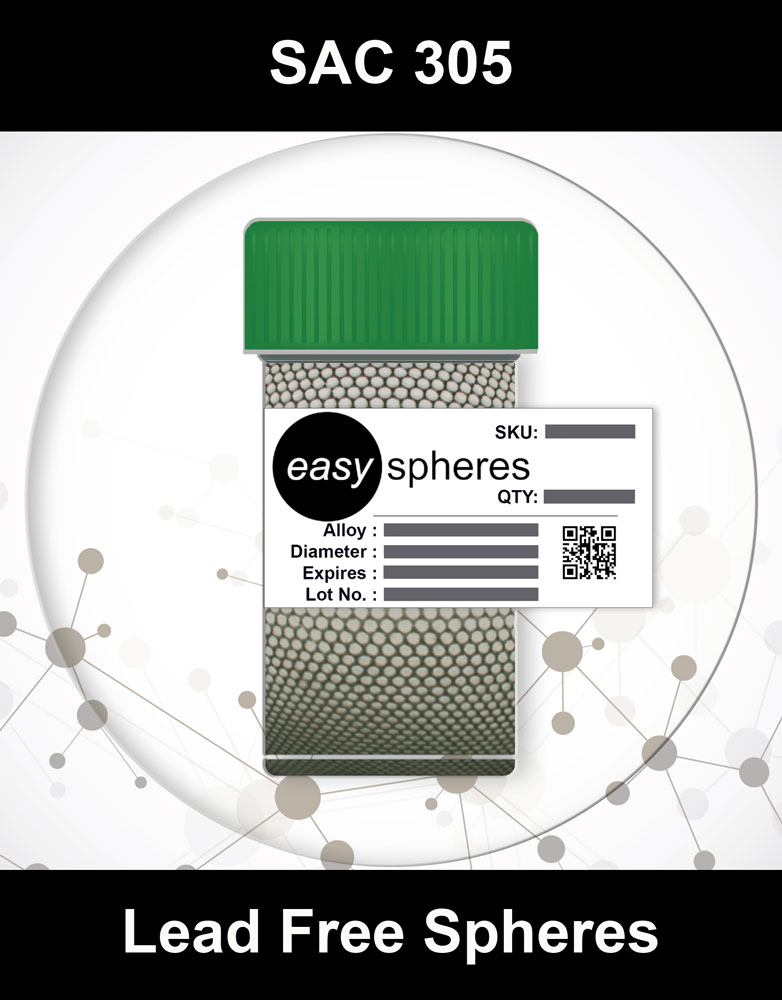

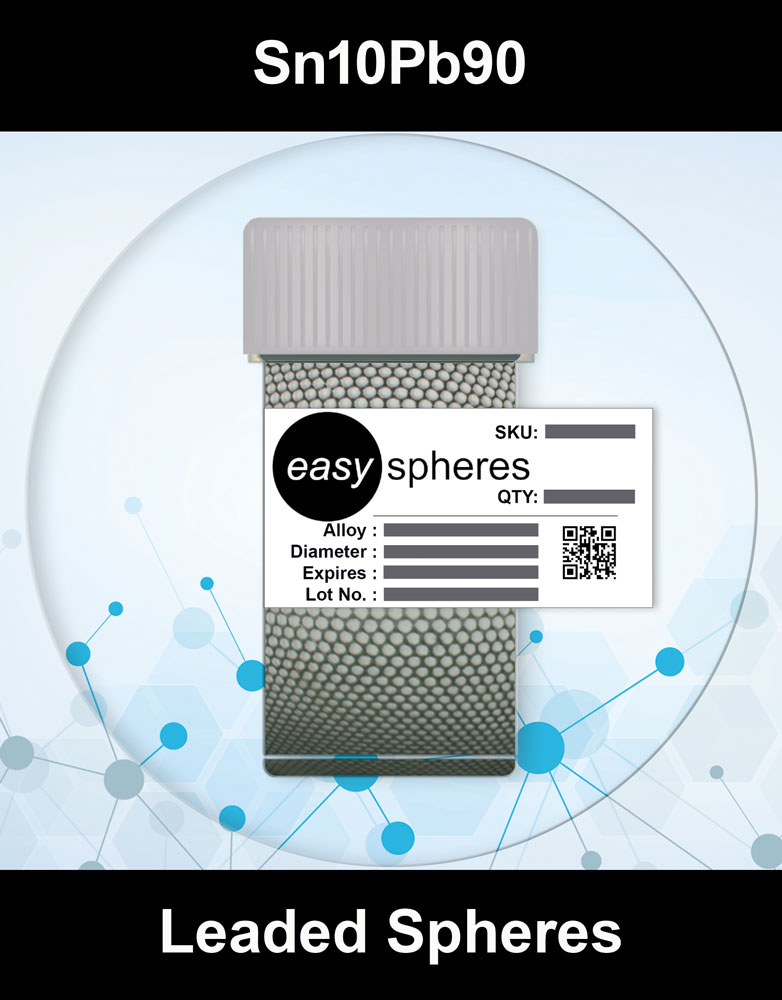

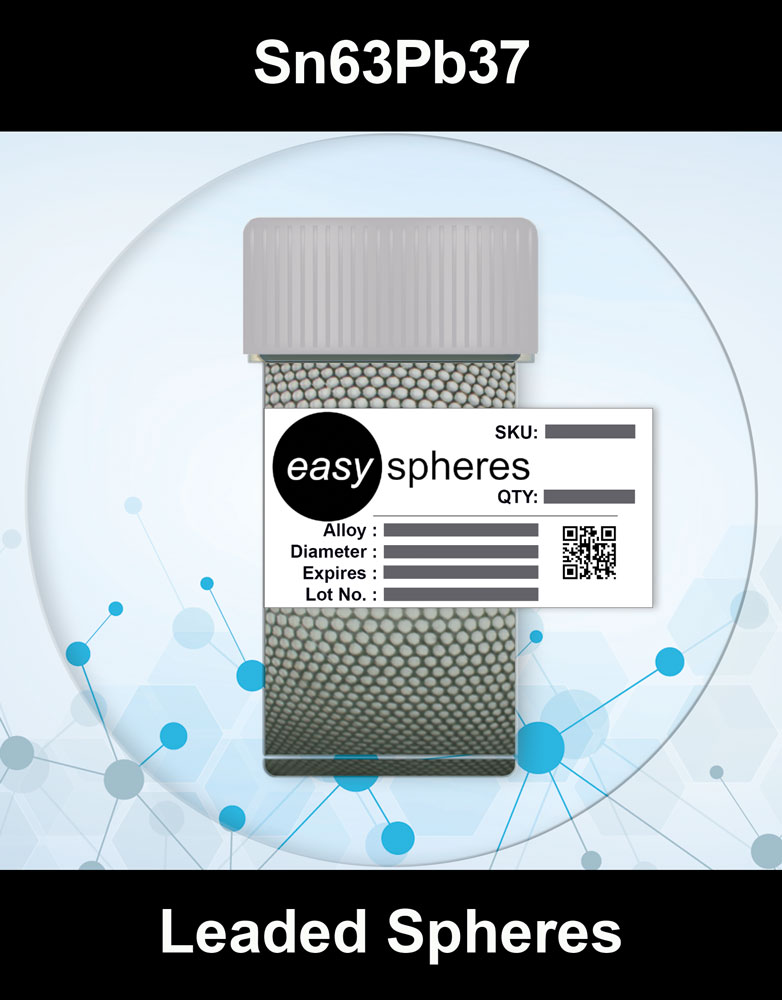

- Alloy families: Lead-free (SAC105, SAC305, SAC405, Sn96.5Ag3.5), low-temperature (Sn42Bi58), tin-lead (Sn63Pb37, Sn62Pb36Ag02), and high-lead (Sn20Pb80, Sn10Pb90, Sn05Pb95)
- Applications: BGA and CSP ball attach, flip chip and wafer-level bumping, BGA rework (including reballing), PCB assembly, prototyping
- Stock diameters: 0.050 mm to 0.889 mm (0.002 in to 0.035 in)
- Dimensional tolerance: Maximum dimensional tolerance ±4% (typical measured ±0.50% for 0.050 to 0.450 mm, ±1% for 0.500 to 0.550 mm, ±0.83% for 0.600 to 0.889 mm); sphericity deviation less than 1.5%.
- Quality: Alloy purity in conformance with IPC J-STD-006; Certificate of Conformance ships with every order; standard quality documentation available on request.
- Packaging: Medical-grade, ESD-safe containers designed to resist surface darkening from transit tumbling; QR-coded for lot traceability. Bulk jars and tape and reel available.
- Shelf life: Two years from the date of shipment from the EasySpheres facility (product held sealed in controlled inert storage until shipped).
- Minimum order: 10,000 spheres
How to Choose the Right Solder Spheres for BGA and CSP Applications
Selecting the right solder spheres involves matching the alloy composition, sphere diameter and packaging format to the assembly requirements. Lead-free alloys such as SAC305 and SAC405 are available for lead-free applications, while Sn63Pb37 and other tin-lead alloys serve processes that specify leaded materials. Low-temperature Sn42Bi58 provides an alternative for applications requiring a lower melting temperature. The required sphere diameter should also match the component and assembly specifications.
